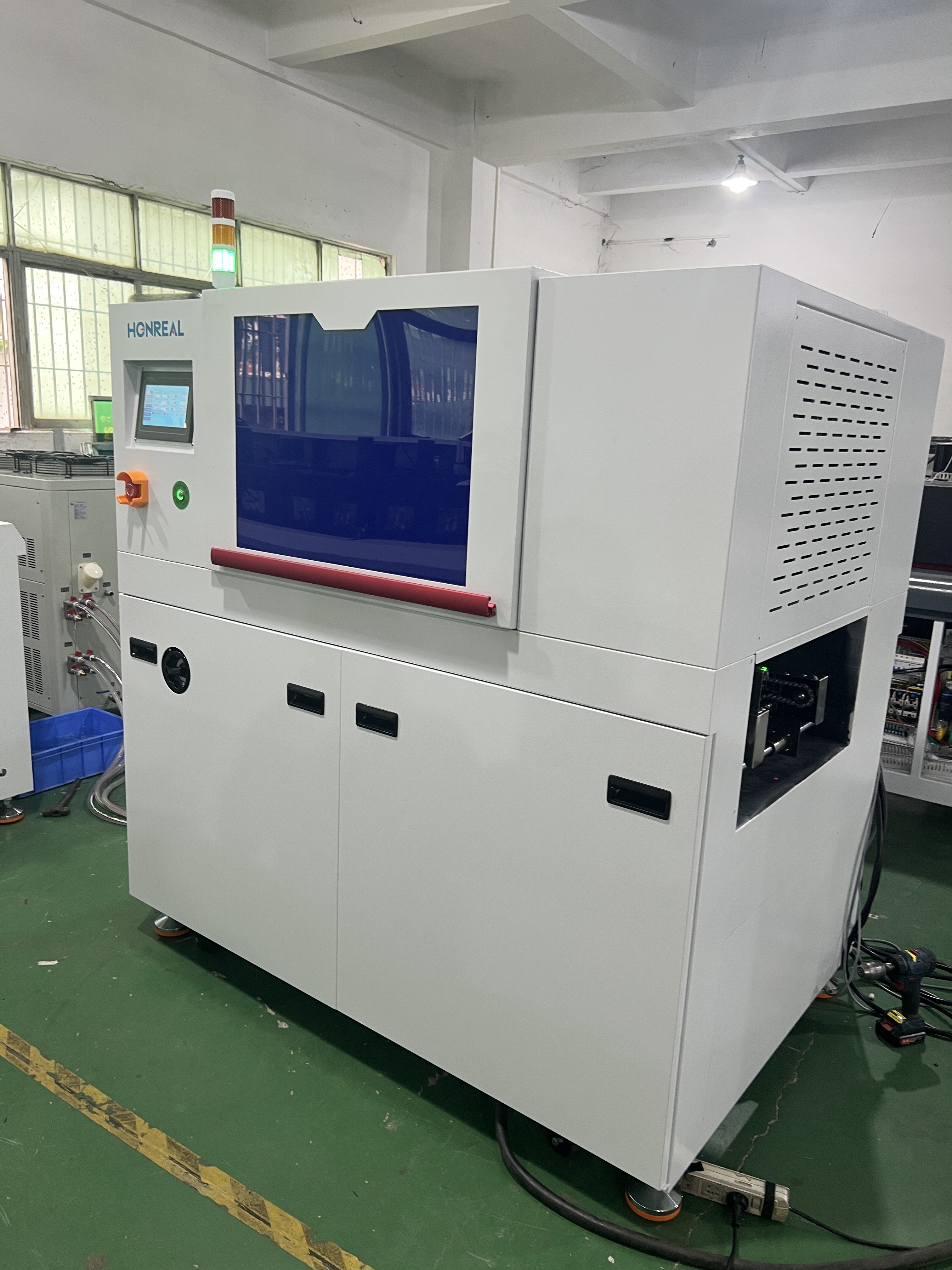

Compact UV Curing Oven for SMT with 395nm UVA Wavelength

1
MOQ
USD12000-20000 Per Set
Price
Compact UV Curing Oven for SMT with 395nm UVA Wavelength
Features Gallery Product Description Request A Quote
Features
Specifications
Control System: PLC +Kunlun Tongtai
Conveyor Speed: 0.3-3M/min
UV Main Peak Wavelength: 280nm~420nm Main Peak UVA 395nm
UV Life: 3000h
Dimensions: 1500L* 910W *1800H (mm)
Width: 100~450mm Adjustable
Inlet And Outlet Height Adjustment: 10~110 (mm)
Cooling Method: Forced Air Cooling
Highlight:

Compact UV curing oven for SMT

,

395nm UVA wavelength curing oven

,

SMT reflow soldering UV oven
Basic Infomation
Place of Origin: China
Brand Name: Honreal
Certification: CE
Model Number: HR-UV1
Payment & Shipping Terms
Packaging Details: Export wooden box packaging
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 100 Sets Per Month
Product Description
Compact Inline High Intensity Ultraviolet UV Curing Oven Machine
Professional UV curing system for conformal coatings, adhesive glues, and UV curable inks with precise control and efficient performance.
Key Specifications
Attribute Value
Control system PLC +Kunlun Tongtai
Conveyor speed 0.3-3M/min
UV Main peak wavelength 280nm~420nm Main peak UVA 395nm
UV life 3000h
Dimensions 1500L* 910W *1800H (mm)
Width 100~450mm adjustable
Inlet and outlet height adjustment 10~110 (mm)
Cooling method Forced air cooling
Product Features
Frame Construction
  • Welded with thickened square tubes for structural strength
  • Electrostatic powder spraying and baking finish for durability
  • Excellent sealing to prevent UV light exposure
Working Components
  • High-energy UV lamps with superior film penetration
  • Focusing design with imported high-focusing reflective lampshade
  • Specially designed ventilation system with adjustable lamp angles
  • Lamp protection devices and working status monitoring
Conveyor System
  • Hard anodized guide rails for durability
  • Stepless speed regulation for stable operation
  • Manual width adjustment capability
  • UV protective skirts at inlet/outlet
Advanced Features
  • Delayed shutdown protection function
  • Online PCB board counting
  • Three-section transportation with variable speeds
  • Hardware interface testing capability
  • IO monitoring for maintenance convenience
  • Chain transmission for SMT equipment integration
  • User-friendly touch screen interface
Technical Parameters
Parameter Specification
Model UV machine HR-UV1
Power supply Three-phase five-wire 380VAC 50Hz
UV lamp power*quantity 6kw*1
UV light intensity 800mw/cm2
Irradiation direction Downward illumination
UV band and main peak wavelength 280nm~420nm Main peak UVA 395nm
Conveyor belt speed 0.5~3 m/min continuously adjustable
Width 100~450mm adjustable
Conveyor belt transmission mode Gear motor drive
Conveyor belt height from ground level 900 ±25(mm)
Effective irradiation width 450 (mm)
Inlet and outlet height adjustment 10~110 (mm)
UV energy deviation (transmission width direction) Within 20%
UV indoor dynamic temperature ≤100℃ (Belt speed 2m/min)
Box surface temperature ≤40℃
Cooling method Forced air cooling
Exhaust volume 750m3 /h
UV lamp power adjustment 100% variable light
UV lamp height adjustment 120(mm) Distance from UV lamp to track
UV lamp service life 3000h
Total Power ~9KW
External dimensions of the main unit 1500L* 910W *1800H (mm)
Device appearance color Computer White
Production Workshop
Compact UV Curing Oven for SMT with 395nm UVA Wavelength 0
Frequently Asked Questions
Is this machine easy to operate for first-time users?
Yes, the machine is designed for user-friendliness. We provide an English manual and instructional videos to guide you through the operation steps. Additional support is available via email, Skype, phone, or online service.
What is the warranty period for this machine?
We offer a comprehensive one-year warranty for the machine.
Can I have my company logo printed on the machine?
Yes, we provide custom logo services at no additional cost. Please share your specific requirements for the logo design and placement.
What is the purchasing process for this machine?
  1. Inquire about the product via online chat or email
  2. Negotiate and confirm final price, shipping method, and payment terms
  3. We'll issue a proforma invoice for your confirmation
  4. Make payment as specified in the proforma invoice
  5. We arrange production/preparation with 100% quality inspection
  6. Order shipped via agreed method (air or sea)
Packaging
Compact UV Curing Oven for SMT with 395nm UVA Wavelength 1
