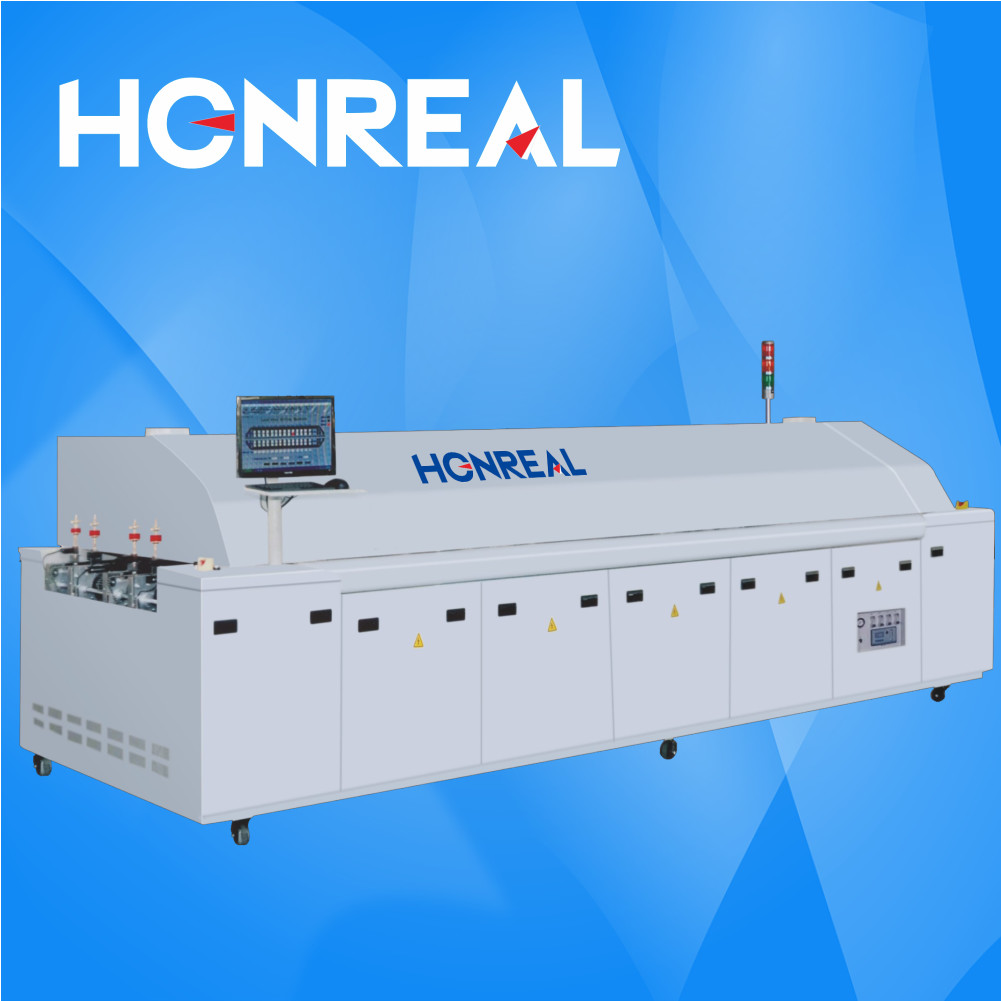

Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection

1set
MOQ
Negotiable
Price
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Features Gallery Product Description Request A Quote
Features
Specifications
Dimensions: L5520*1430*1530 Mm
Zones Constitute: Upper8,bottom8,2 Cooling Zones
Heating Method: Fully Forced Air Convection
Temperature Controlling: PID Close-loop Control, SSR Drive
Temperature Range: Ambient---300℃
Temperature Accurancy: ±1 ℃
Conveyor Method: Mesh Belt And Chain Conveyor
Max PCB Width: 400mm
Hood Opening: Motorized
0ptions: Center Rail Support
Highlight:

Modular Hot Air Reflow Oven

,

SMT Hot Air Reflow Oven

,

Lead Free smt reflow Oven
Basic Infomation
Place of Origin: China
Brand Name: HONREAL
Certification: CE ISO
Model Number: HR-8C
Payment & Shipping Terms
Packaging Details: woodencase
Delivery Time: 15 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100 sets per month
Product Description
Modular Design Hot Air Reflow Oven SMT Lead Free Fully Forced Air Convection
Product Specifications
Attribute Value
Dimensions L5520*1430*1530 mm
Zones constitute Upper8, bottom8, 2 cooling zones
Heating method Fully forced air convection
Temperature controlling PID close-loop control, SSR drive
Temperature range Ambient---300℃
Temperature accuracy ±1 ℃
Conveyor method Mesh belt and chain conveyor
Max PCB width 400mm
Hood Opening Motorized
Options Center rail support
Product Features
  • Modular design of temperature zone makes maintenance convenient and quick
  • Self-extending guide rail design prevents deformation from causing board fall-off
  • Segmented heating method saves energy and reduces power consumption
  • Extended forced constant air cooling zone at top and bottom
  • Flux recovery device meets environmental protection requirements
  • SMEMA communication enables automated operation mode
  • About 70% of machine uses imported brand accessories for durability and stability
Technical Specifications
Machine HR-8C HR-10C
Heating zones Upper 8 zones
Bottom 8 zones		 Upper 10 zones
Bottom 10 zones
Heating tunnel 3110mm 3890mm
Dimension L5520*1430*1530 L6300*1430*1530
Net weight about 2760Kg about 3060Kg
General power 64KW 83KW
Power consumption Approx.7--30KW Approx.9--38KW
Rising time 20 minutes 20 minutes
Controlling type PC + PLC controlling
Heating method Fully forced air convection
Temperature controlling PID close-loop control, SSR drive
Temperature range Ambient---300℃
Temperature accuracy ±1 ℃
Temperature uniform ±1.5 ℃
Cooling 3 cooling zones (top and bottom)
Conveyor method Mesh belt and chain conveyor
Conveyor height 900±20mm
Max PCB width 400mm
PCB clearance Top / Bottom 30mm
Conveyor direction Left to right
Conveyor speed 300-2000mm/min
Hook lift Electrical screw pole
UP/Downstream communication SMEMA
Power supply 380v,3ph,50hz
Temperature Zone Features
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection 0
  • Small hot air circulation structure with adjustable air volume via computer
  • Imported high temperature resistant wind motor with air volume up to 70CFM
  • Extended temperature zone length of 300mm per zone
  • Nickel-chromium heating wire imported from Japan
  • 3mm thick electrolytic plate air distribution plate for uniform heat distribution
  • Segmented heating to reduce power consumption
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection 1
  • Unique front and rear air return design to avoid cross-temperature
  • Thermocouple wire imported from Japan
  • PID closed-loop control with accuracy of ±1℃
  • Transverse temperature difference up to 2℃
  • Process capability CPK reaches 1.784
Installation and Calibration
  • Working environment: Horizontal, dry, well-ventilated workshop; Ambient temperature: 5~45℃; Humidity: 20~95%
  • Power requirements: 380V, 100A (16mm² stranded wire), 3-phase 5-wire system
  • Ventilation: Artificial draft system required at both ends (25 m³/min air flow)
  • Installation: Position according to production requirements; Level using footpads
  • Calibration: Parameters adjusted to customer requirements (chain speed, zone temperatures); Pre-calibrated before shipment
About Us

Shenzhen Honreal Technology Co., Ltd is a national high-tech enterprise specializing in SMT equipment research, development, production, and sales. With a registered capital of 5 million, we serve top global electronic companies. Our experienced technical team and innovation capabilities allow us to create better product supply chains and service teams to meet diverse customer needs.

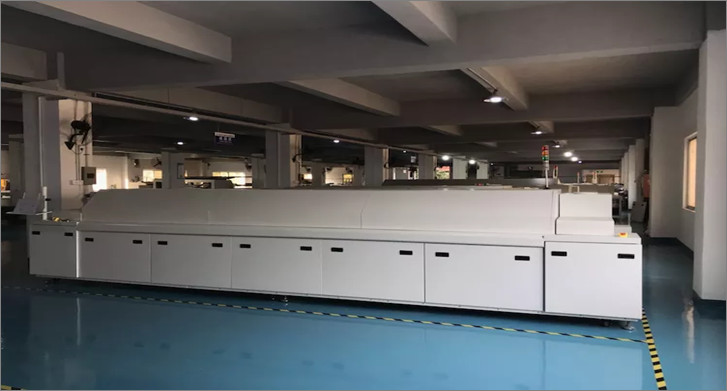

Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection 2 Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection 3
Certifications
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection 4
Frequently Asked Questions
How can you guarantee your sales' quality?

We guarantee that every machine undergoes rigorous testing before delivery to ensure excellent performance.

How is the training?

After purchase, your engineers can visit our company or easily learn operation through training videos and user manuals included with the machine.

Can I have my logo on the product?

We fully support customized logo service at no additional cost. Just provide your requirements.

Is it hard to use these machines?

No, our clients typically learn operation within 2 days.
