Hot Air Convection Reflow Soldering Led Low Cost Reflow Oven Machine
Product introduction:
1.Streamline shape design make the oven looks great. Touch screen and PLC controlling system .It can save 50 groups temperature parameters and provide extra 2 ports for profile testing.
2.The software has the functions like , temperature setting and editing, PCB parameter menu, and profile testing, alarms and multi-languages conversion.
3.Brand electrical component like Schneider (German) breaker, KETE(Korea) SSR, Omron (Japan) box breaker. Meanwhile the CE certificated blower is specially design for lead-free reflow oven. It runs stable and lower noise.
4.Upper zone and hood can be opened by the electrical screw automatically. It is very convenient for cleaning and maintenance.Electrical pole will hold the upper zone andn cover, even when power is off suddently, the cover will not drop down. It's much safer than the air cylinder holder.
5.Specially designed Ni-Cr heater filaments, provide a very quick ramp up time. It takes just 15 minutes from ambient to setting temperature.
6.The inner tunnel of the oven is made of stainless steel which easy for cleans.
7.The entire upper and bottom zones are forced air convection; provide great temperature accuracy and uniform.

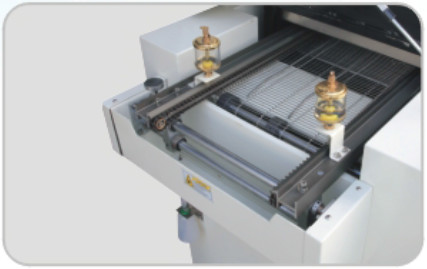

8.Stainless steel mesh belt and pin chain conveyor work together.
9.Industrial chiller provides better cooling performance.
10.SMEMA interface.
Machine's parameters:
| Model | HRM-640 |
| Heating zones | Upper 6 zones |
| Bottom 6 zones | |
| Heating tunnel | 1938mm |
| Dimension | L3571*W1200*H1450 |
| Net weight | about 1100Kg |
| General power | 41KW |
| Power consumption | Approx.8--8KW |
| Ramp Time from Room Temperature to 260 Deg C | < 15 mins |
| Controlling type | Touch screen and PLC |
| Heating method | Fully forced air convection |
| Temperature controlling | PID close-loop control, SSR drive |
| Temperature range | Ambient---350℃ |
| Temperature accurancy | ±1 ℃ |
| Temperature uniform | ±2 ℃ |
| Cooling | one cooling zone, air cooler for cooling |
| Conveyor method | Mesh belt and chain conveyor |
| Conveyor height | 900±20mm |
| Mesh belt width | 450mm |
| Max PCB width | 400mm |
| PCB clearance | 30mm |
| Conveyor direction | Left to right |
| Conveyor speed | 0-1000mm/min |
| Hook lift | Electrical screw pole |
| Power supply | 380v,3ph,50hz |
HRE-640 Lead Free Reflow Oven Aluminum Heating System
Aluminum heating system is made up by 2 pieces aluminum plates (topand bottom) and 2 pieces U shape heater by stainless steel, comparewith the traditional heater, advantages as below:
1.Easy to replace and maintain, only need to remove fix screws andreplace U-heater.
2.lt has longer service life than old version, can save more cost forcustomers.
3.Better raw materials to ensure the stability of oven temperature.
4.Customers can replace aluminum heating system on installed reflowovens(with old heating elements), maintenance and service problem canbe solved at once.

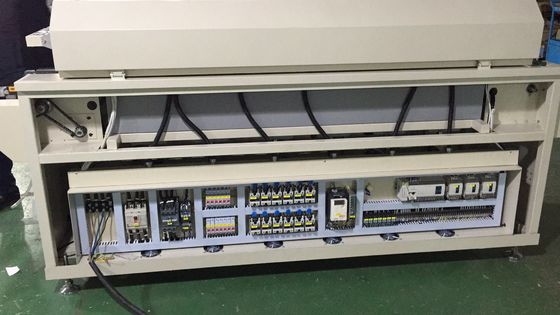

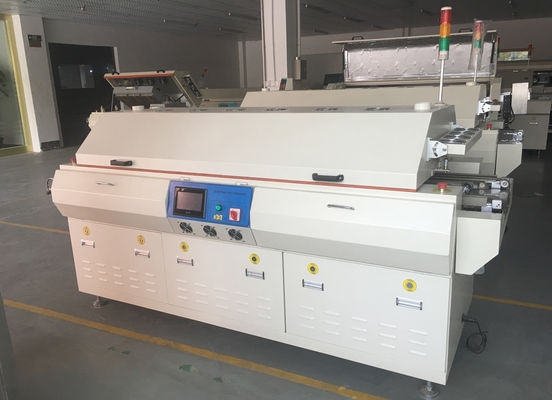

Photo show:
